tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208

Product Description

Tapered Roller Bearing 32208 7508E 32208A HR32208J 4T-32208 32208JR  used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries, Product Description   Tapered Roller Bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered Roller Bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads. This is the most basic and most widely used type of Tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.   Industries: Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind. Benefits: Enhanced performance in demanding applications. bearing  Tapered roller bearing catalogue tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208
Bearing Specification Rated Load(KN) Speed(r/min) Weight
No. d(mm) D(mm) W(mm) Cr(N) Cor(N) Grease Oil kg
30202 15 35 11.75 15.8 14.4 22000 28000 0.053
30203 17 40 13.25 21.2 21.3 19000 27000 0.075
30204 20 47 15.25 28.2 30.6 22000 28000 0.126
30205 25 52 16.25 29.4 22.54 20000 25000 0.157
30206 30 62 17.25 45.4 50.5 18000 24000 0.231
30207 35 72 18.25 56.8 63.5 20000 25000 0.331
30208 40 80 19.75 63 74 17000 22000 0.422
30209 45 85 20.75 71.3 83.8 16000 22000 0.474
30210 50 90 21.75 73.3 92.1 17000 22000 0.53
30211 55 100 22.75 94.6 112.8 15000 20000 0.712
30212 60 110 23.75 103.3 130 14000 19000 0.904
30213 65 120 24.75 120.6 152.6 15000 20000 1.13
30214 70 125 26.25 138.3 173.7 13000 18000 1.261
30215 75 130 27.25 138.4 185.4 12000 16000 1.36
30216 80 140 28.25 167.7 212.9 13000 18000 1.675
30217 85 150 30.5 177.6 236.8 11000 16000 2.06

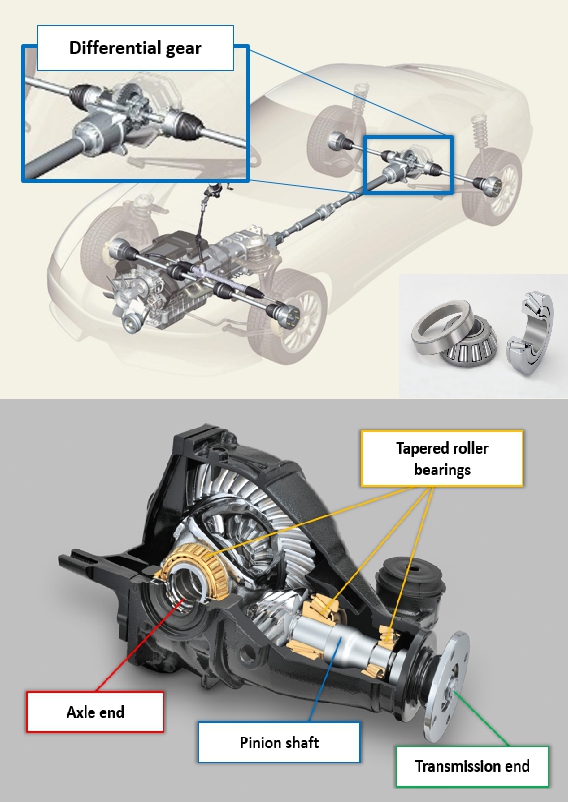

Koyo Automotive bearing gearbox bearing tapered roller bearing tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208 Application  tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208 Company Profile  tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208 Factory Show  tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208 Target Market  tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208 Payment & Delivery  tapered roller bearing 32208 7508E 32208A HR32208J 4T 32208 32208JR size 40x80x23mm bearing 32208

Contact us if you need more details on Truck Wheel Bearing Tapered Roller Bearing 32208 Rodamiento De Rodillos Bearings 32208. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 32208 Jr Rulman Koy Roller Bearing 32208 Hr 32208 Price List Tapered Roller Bearing 32208、S Kf Baring 32208 Cojinete De Rodillos Conicos 32208 Tapered Roller Bearing 32208. If these products fail to match your need, please contact us and we would like to provide relevant information.
