low price types of bearing bore size 65mm 32013 31013JR taper roller bearing 32013X 32013 X/Q rodamiento quality

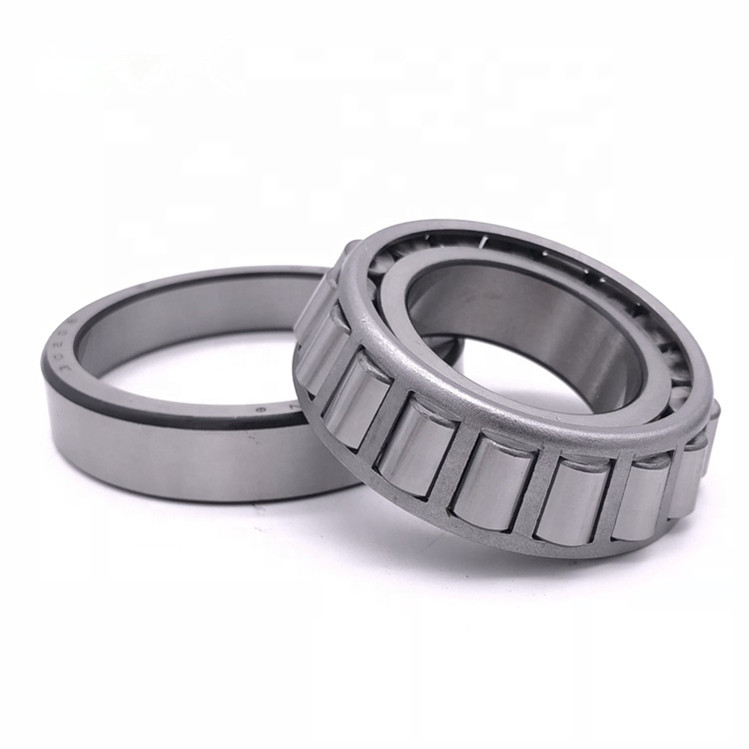

low price types of bearing bore size 65mm 32013 31013JR taper roller bearing 32013X 32013 X/Q rodamiento quality Product Description   Tapered Roller Bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered Roller Bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads. Industries: Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind. Benefits: Enhanced performance in demanding applications.    Types of Tapered Roller Bearing: single row Tapered roller bearing double row tapered roller bearing four row tapered roller bearing tapered roller wheel bearing inch series tapered roller bearing

Specification: tapered roller bearing
Series	tapered roller bearing
Bearing number of row	single row tapered roller bearing
Bearing cage type	stamped steel cage
Dimensions:
d - Bore	65 mm
D - Cup outer diameter	100 mm
T - Bearing width	23 mm

  metric tapered roller bearing single row size list

Bearing	Specification			Rated Load(KN)		Speed(r/min)		Weight
No.	d(mm)	D(mm)	W(mm)	Cr(N)	Cor(N)	Grease	Oil	kg
30202 bearing	15	35	11.75	15.8	14.4	22000	28000	0.053
30203 bearing	17	40	13.25	21.2	21.3	19000	27000	0.075
30204 bearing	20	47	15.25	28.2	30.6	22000	28000	0.126
30205 bearing	25	52	16.25	29.4	22.54	20000	25000	0.157
30206 bearing	30	62	17.25	45.4	50.5	18000	24000	0.231
30207 bearing	35	72	18.25	56.8	63.5	20000	25000	0.331
30208 bearing	40	80	19.75	63	74	17000	22000	0.422
30209 bearing	45	85	20.75	71.3	83.8	16000	22000	0.474
30210 bearing	50	90	21.75	73.3	92.1	17000	22000	0.53
30211 bearing	55	100	22.75	94.6	112.8	15000	20000	0.712
30212 bearing	60	110	23.75	103.3	130	14000	19000	0.904
30213 bearing	65	120	24.75	120.6	152.6	15000	20000	1.13
30214 bearing	70	125	26.25	138.3	173.7	13000	18000	1.261
30215 bearing	75	130	27.25	138.4	185.4	12000	16000	1.36
30216 bearing	80	140	28.25	167.7	212.9	13000	18000	1.675
30217 bearing	85	150	30.5	177.6	236.8	11000	16000	2.06

Main Products Application   Company Profile   Factory Show   Target Market   Payment & Delivery

Contact us if you need more details on 32013 X/q Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Bearing Tapered Roller Bearing、Roller Bearing Camshaft. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Tapered roller bearing
